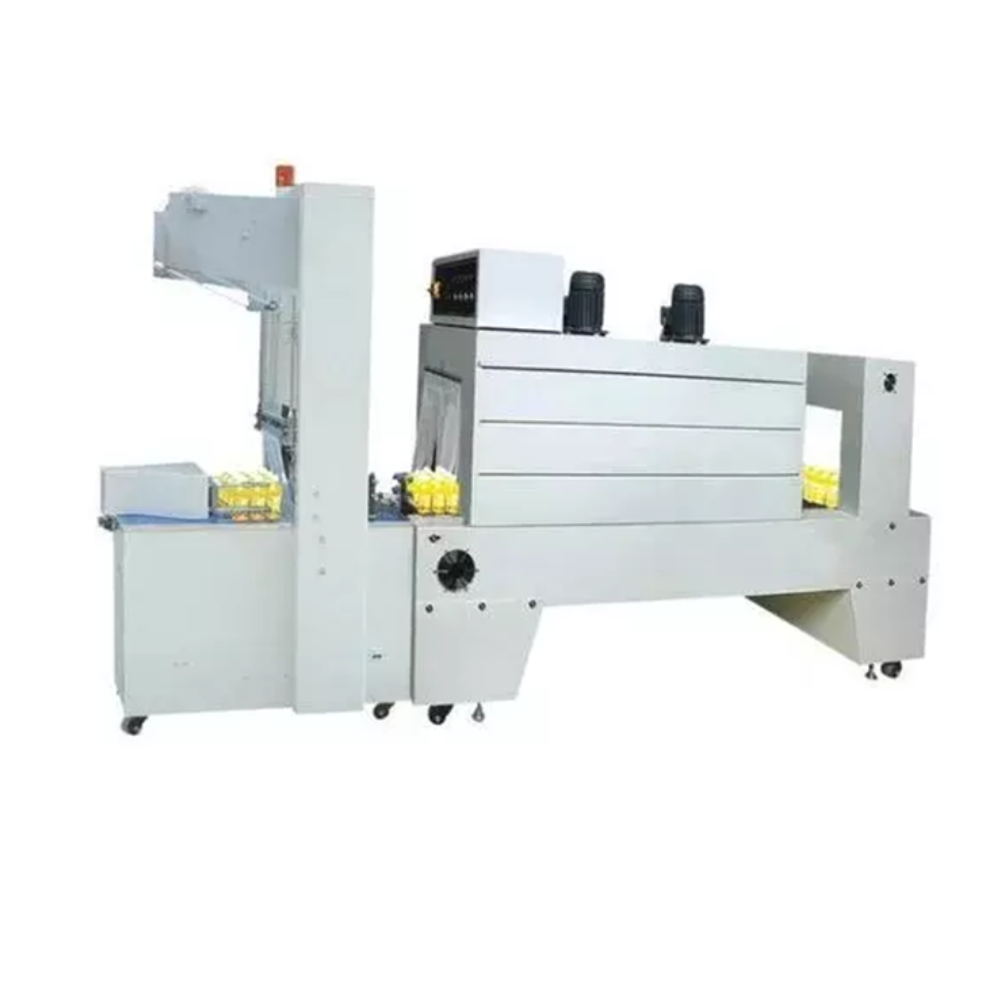

Shrink wrapping machine AK-100A
Product description： Plant type: AK-100A Plant external dimension: L2500×W830×H1880mm Max. Wrapping dimension: L560×W300×H300mm Shrink film material: PE/PVC/POF Shrink film thickness: 0.06-0.12 mm Shrink tunnel Max. temperature: 160-230 (can be adjusted freely) Max. output per minute: 0-5pcs Plant power: 18Kw Actual power: 15Kw/h Voltage: 380/220V Plant weight: 0.65T Fan: 40w 220V 2units, 120w 380V 2units
Shrink wrapping machine AK-100A
Product description： Plant type: AK-100A Plant external dimension: L2500×W830×H1880mm Max. Wrapping dimension: L560×W300×H300mm Shrink film material: PE/PVC/POF Shrink film thickness: 0.06-0.12 mm Shrink tunnel Max. temperature: 160-230 (can be adjusted freely) Max. output per minute: 0-5pcs Plant power: 18Kw Actual power: 15Kw/h Voltage: 380/220V Plant weight: 0.65T Fan: 40w 220V 2units, 120w 380V 2units
| Capacity | 2-6 parts/minute |
|---|---|
| Sealing/shrinking time | 0.5-1.5 s; 0-0.6 s |
| Air supply | 170L/min 0.3-0.5Mpa |
| Maximum film roll diameter | φ30mm |
| Max. film width | 550mm |
| Film thickness | 0.03-0.25mm |
| Max packaging dimension (L*W*H) | 450x270x350mm |
| Min packaging dimension (L*W*H) | 250x60x60mm |
| Shrink film | PE |
